Aluminum Dustproof Industrial Open Frame LCD Monitor 19 Inch DC 12V Power

Name: Aluminum Dustproof Industrial Open Frame LCD Monitor 19 Inch DC 12V Power
Brand: CJTOUCH
Price: 1 USD

Wholesale Aluminum Dustproof Industrial Open Frame LCD Monitor 19 Inch DC 12V Power from china suppliers

Brand Name : CJTOUCH

Model Number : COT190E-IWF02/3

Certification : CE FCC

Place of Origin : Dongguan China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T,

Supply Ability : 5000 PCS per quarter

Delivery Time : 2-3days

Packaging Details : 2 Infrared touch monitors in 1carton

Keywords : Infrared Touch Lcd Monitor for Gaming Kiosks

Touch screen : IR Touch (Support Multi Touch),infrared touch monitor,Infrared Touch Screen

Resolution : 1280×1024

Touch point : 1-10 points option

Materials : Plastic and Aluminum

interface : VGA/DVI/USB/HDMI/DC12V

Warranty : 1 year

Application : Gaming ,retail ,kiosk,care,education

Contact Now

19" Touch Screen Monitor Industrial Open Frame Infrared Lcd Monitor for Gaming Kiosks

Features

--1-10 point real multi touch

--VESA Hole for Wall Mount installation

--Free for 1 year warranty

--Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........

--Can Customizable vanfalprool /waterproof /dustproof/Anti Sunlight/AG/AR/AF Glass option.

--This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset&overall design.

Easy to be integrated on POP/POS display/kiosk.

Specification:

Description	19″TFT Rear Mount Touchmonitor
Case/Bezel Color	Black
Display	4:3 Ratio Active matrix TFT LCD
Optimal(native) resolution	1280X1024@60Hz
Sychronization Range	Horizontal:30-80 kHz; Vertical: 60-75Hz
Useful screen area	Horizontal: 14.8" (376 mm);Vertical: 11.85" (301mm)
Colors	16.7 million
Brightness	LCD panel: 300cd/m2 (typical)
	with touchscreen: 230 cd/m2 (typical)
	With IR touchscreen: 280 cd/m2 (typical)
Pixel Pitch	0.294 x 0.294 mm
Response Time	8 msec (typical)
Contrast ratio	800:1 typical
Viewing angle(typical, from center)	Horizontal (left/right): 160°(80° /80° )
Viewing angle(typical, from center)	Vertical (up/down): 170°(85° /85° )
Backlight Lamp life	50,000 Hrs to 1/2 brightness
Input video format	VGA or DVI optional
Input video signal connector	Mini D-Sub 15-Pin VGA type
On Screen Display(OSD)	Remote OSD with 1.2m cable
Touch Technology	SAW(Resistive, Capacitive Optional)
Touch Interface	RS232 and USB interface optional
Touch Resistive Time	10ms
Mounting Options	Rear mount VESA, 75 mm & 100mm
Power supply	External:100-240V AC, 50-60 Hz
Power Consumption	50W max
Temperature Range	Operating: 0°C to 50°C; Storage: -20°C to 60°C
Humidity Range	Operating: 10%-90%; Storage: 5%-90% no condensing
Warranty	Monitor: 3 years/’; LCD Panel: 1 year
Agency Approvals	FCC, CE, RoHS compliant

IR touch screen specification
Products Status:	Stock	Screen Size:	19"
Type:	Infrared	Interface Type:	USB
Resolution:	32768x32768	Brand Name:	CJTouch
Place of Origin:	Guangdong, China	Technology:	IR Technology
Input Method:	Any opaque object	Touch Times:	Infinite time
Function:	Zoom in and out,Light protection,durable,Click,Draw	Response time:	≤7ms
Touch points:	20 points	Warranty:	12 months
Application:	Interactive,Teaching ,Conference,Business	Operating System:	Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux
Installation:	Plug and Play	Glass:	3mm glass attached (Or no glass)
Ratio	5:4	Frame	Aluminium alloy with black surface treatm

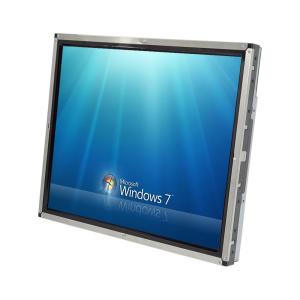

Product Picture

Aluminum Dustproof Industrial Open Frame LCD Monitor 19 Inch DC 12V Power

Drawing :

Aluminum Dustproof Industrial Open Frame LCD Monitor 19 Inch DC 12V Power
