Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage

Name: Waterproof 104 Inch Infrared Touch Screen Anti Sunlight 5V Voltage
Brand: CJTOUCH
Price: 1 USD

Wholesale Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage from china suppliers

Brand Name : CJTOUCH

Model Number : CIN104AP-3F-NA2

Certification : CE / FCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500pcs/week

Delivery Time : 1-2 working days

Packaging Details : 1pcs or 20pcs in a carton

Touch type : Infrared touch screen

Interface : USB

Touch Points : 2,4,6 touch ponits

Glass : 3mm Tempered Glass

input voltage : 5V

Driver : Plug and Play

Customized : Support

Sunlight : Anti-sunlight

Contact Now

10.4 inch Infrared Touch Screen 2/4/6/10 Touch Points IR touch screen

An infrared touchscreen device emits infrared light across the interface, which is picked up by various sensors, typically located on the edges or corners. The infrared light is invisible to the naked eye. This makes it particularly beneficial when used to produce large touchscreen displays.

Infrared touch screen Features:

1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

Infrared Touch Application Scene:
1.Education
2.Medical industry
3.Finance
4.Exhibition
5.Industrial control
6.Man-machine interaction
7.TV
8.PC

Specification of Product

MECHANICAL
P/N	CIN Slim series
Overlay Thickness	7.9 mm
Overlay Frame Width	18.5 mm
Housing	Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force	Non Minimum activation force
Position Accuracy	1mm
Resolution	4096(W)×4096(D)
Response Time	Touch: 6ms
	Drawing : 6ms
Cursor Speed	120 dot/sec
Glass	3mm glass Transparency : 92%
Object Touch Size	≥ Ø5mm
Touch Intensity	Over 60 millions single touch
ELECTRICAL
Operating Voltage	DC 4.5V ~ DC 5.5V
Power	1.0W (100mA at DC 5V)
Anti -Static Discharge (Standard :B)	Touch Discharge,Grade 2:Lab Vol 4KV
	Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature	operating:-10 °C ~ 60 °C
	storage:-30°C ~ 70 °C
Humidity	operating:20% ~85%
	storage:0%~95%
Relative Humidity	40 °C,90% RH
Anti – glare Test	Incandescent lamp (220V,100W) , operating distance over 350mm
Altitude	3,000m
Interface	USB2.0 full speed
Seal Ability	IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment	Directly Under sunlight ,indoor and outdoor
Application of Display	Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system	Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool	Precalibrated & Software can be download in CJTouch Website
VID	1FF7
PID	0013

Picture of Product

Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage

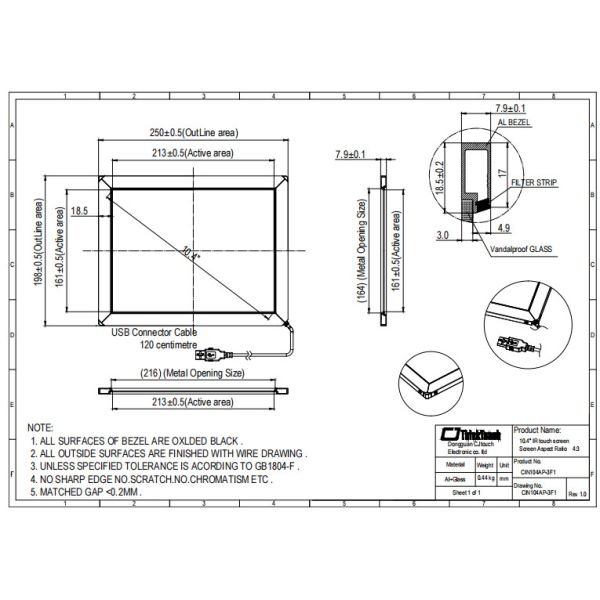

Technical Drawing

Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage
